Brake Resistor

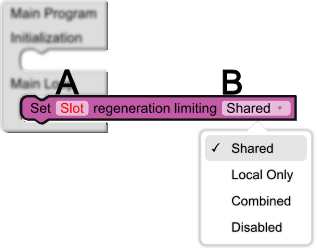

The Brake Resistor block allows you to select how you want motor back EMF regeneration to be handled based upon your application.

Item	Description
A	Select the Slot for the particular InoDrive you want to define braking resistor options
B	From the drop down, select the desired braking resistor function

Brake Resistor Options

Item	Description
Shared	The InoDrive monitors the DC voltage bus and automatically adjusts its internal braking resistor to minimize voltage regeneration onto the DC bus (Default).
Local Only	The InoDrive monitors only its local motor’s behavior and automatically adjusts its internal braking resistor so there is no voltage regeneration onto the DC bus.
Combined	The InoDrive monitors both the DC voltage bus and its local motor’s behavior and automatically adjusts its internal braking resistor to minimize voltage regeneration onto the DC bus
Disabled	The InoDrive provides no automatic control of its internal braking resistor and any back EMF produced by its local motor will be regenerated onto the DC bus
