Identifying InoDrive Components / LED Indicator Definitions

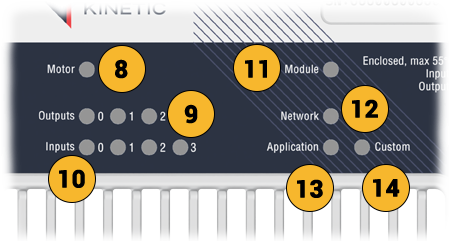

All InoDrive LEDs are RGB LEDs that can illuminate in multiple colors and at variable levels of brightness. The InoDrive uses these multiple colors along with pre-defined on/off rate cycles and even brightness levels to indicate various states and status of the drive.

	Motor
	Digital Outputs
	Digital Inputs
	Module
	Network
	Application
	Custom

Colors Used

Red, Blue, Yellow, Green, White

Illuminations Used

ON & DIM
BLINK
PULSE
DOUBLE PULSE
STROBE
OSCILLLATE
