Servo Performance and Accurate. Surprisingly Affordable.

InoDrive is an innovative, networked, all-in-one integrated motion control card that, together with our InoWorx Programmer, produces highly reliable, accurate, and precise control of brushless DC motors. It combines all the capabilities of a servo amplifier, motion controller, and fully functional logic engine, into a single, flexible, and powerful control unit.

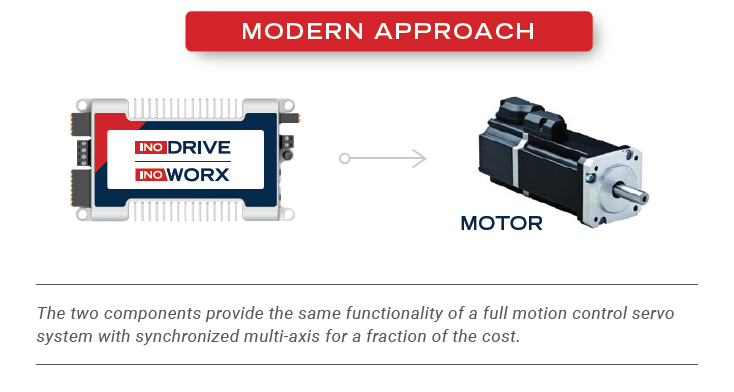

Our pre-packaged, integrated system, satisfies all of the demand of a full motion control system in a simple and low cost environment. It consists of hardware and software designed to make it as simple as possible to create motion where and when you need it.

Key Features:

  • High-speed precision control of servo motors up to 400 watts for 12/24/36/48 V systems
  • InoSync is included in the firmware of the InoDrive module, and coordinates real-time motion in multi-axis applications.
  • Safe Torque Off (STO)
  • Coordinate axis control via InoSync over a standard Ethernet network.
  • Time stamped coordinated motion.
  • Web socket and API driven. Compatible with Raspberry Pi, Arduino, ROCKPro 64, and more.
  • Well suited to robotics and drones; mobile, miliary, and battery applications; pharmaceuticals; semiconductors; and packaging equipment.

Powered by InoWorx

InoDrive is powered by InoWorx, our powerful web IDE platform, providing a code-free approach with all the critical design elements to solve the most demanding motion applications. InoWorx is unique in that it provides API's and pre-engineered routines for PC and SBC driven applications, while also supporting legacy communication protocols for the more traditional control architectures of the past.

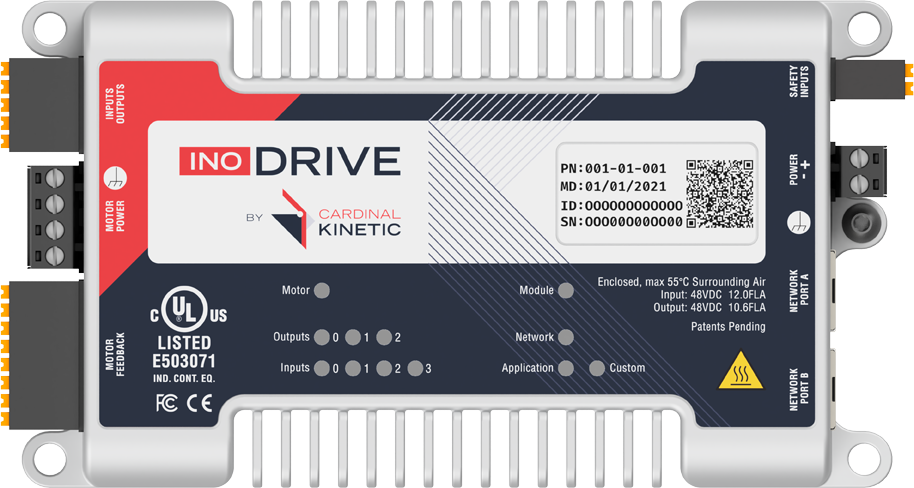

inodrive model

Critical Motion Control Components in a Single Device

Enjoy the benefits of a distributed and robust solution that integrates critical motion control components into a single device while maximizing power, accuracy, ease of use, and reliability.

inodrive model
inodrive model

Specifications
Electrical Input
Input Voltage (Vin ) 12 - 48 VDC continuous with auto-detection of voltages: ● 12V +/- 10% ● 24V +/- 10% ● 36V +/- 10% ● 48V +/- 10%
DC Input Full Load Current 12A
DC Input Idle Current 100mA
Motor Output
Control Methods ● Torque ● Speed ● Position
Acceleration / Deceleration Methods ● Linear ● Jerk-limited S-curve
Output Duty Cycle 0-100%
PWM Frequency 20KHz
Continuous Rated Motor Current 15A (10.6A RMS)
Peak Motor Current 33A (23.3A RMS)
Converter Efficiency at 100% PWM Output Up to 97%
Continuous Rated Electrical Output Power
Intelligent Internal Brake Resistor 8W continuous, 80W peak*
View Full Spec Sheet
